AND NOW INTRODUCING
The EarthTech® e-Wire MSE Wall Systems
AND
The EarthTech® e-Panel MSE Wall Systems
THE E-WIRE FEATURES

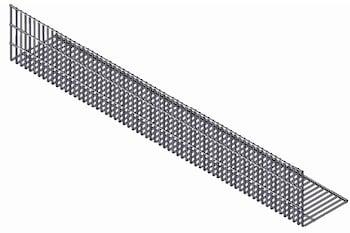

THE E-WIRE BASKET
- 4GA steel wire welded wire mesh 500x482x2860 (VxHxL)mm
- Hot-dipped galvanization following ASTM A123 or CAN/CSA 164-18
- 45 x 324 mm (1.80"x 12.75") (VxH)

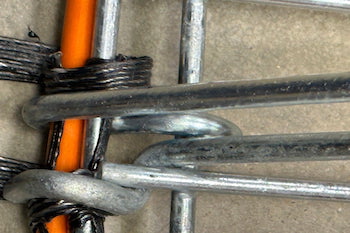

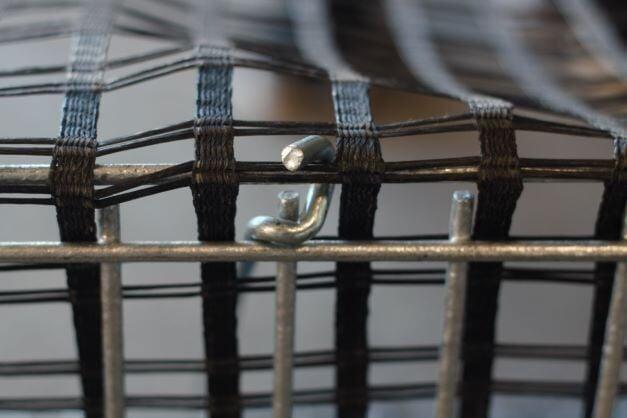

MECHANICAL CONNECTION
- Mechanical connection through min 7mm diameter galvanized steel or fiberglass bars
- Follows the design life and specification requirements
THE E-PANEL FEATURES
WE ALSO OFFER

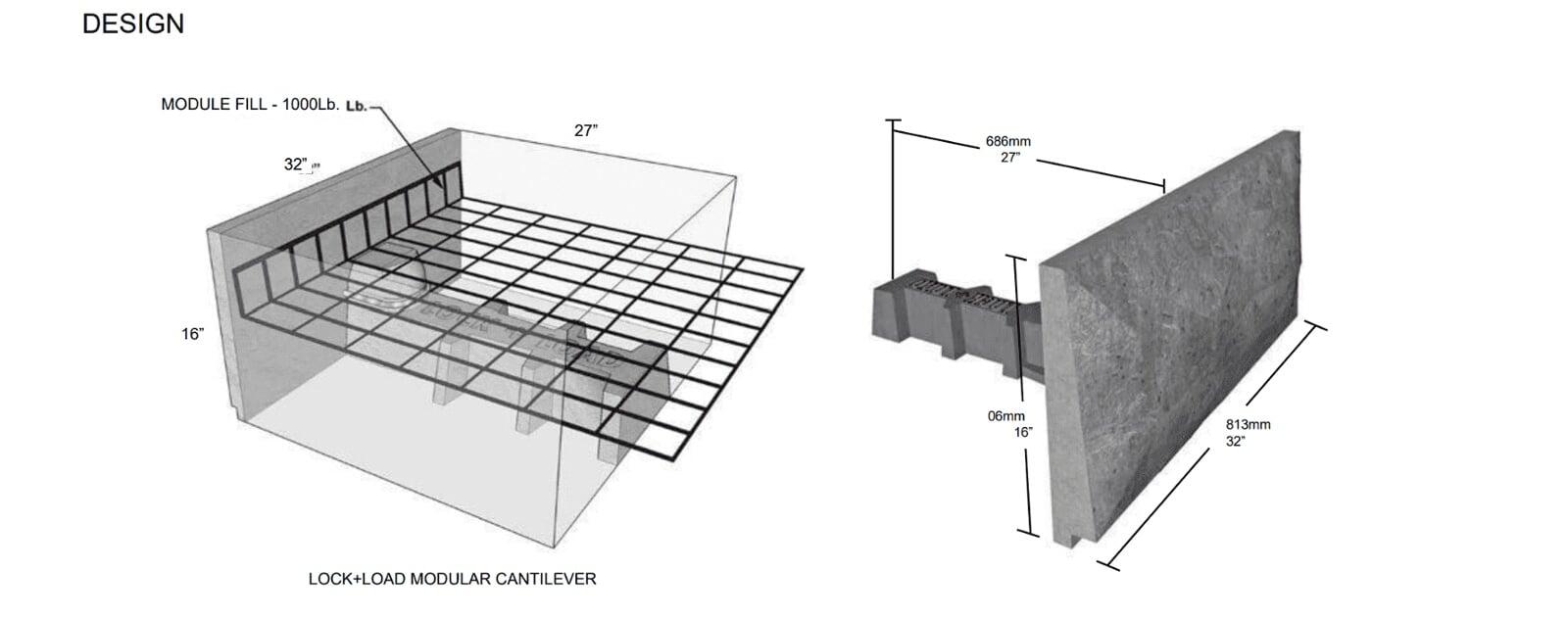

THE LOCK+LOAD FEATURES
- Easy to install and move - lightweight panels weigh less than half of competitive fascias
- Maximizes usable space. Cantilevers accept, guardrails, barriers or fences can be installed directly behind the wall
- Superior freeze-thaw performance (air entrained wet cast)
- Can utilize onsite soils as backfill, minimizing the cost of removing excavated material and/or importing new fill material
- Allows full, consistent compaction at wall face, resulting in uniform consolidation
